Abstract

The assignment about Standard Penetration Test (SPT) stands as one of the main methods for conducting onsite assessments of geotechnical qualities including bearing capacity together with density and strength properties. The study examines the methodology along with the significance of Standard Penetration Testing in foundation design while presenting its findings and implications. Soil classification depends heavily on N-values according to the study and the research outlines the test constraints as well as its applications within the field of geotechnical engineering. The study confirms that Standard Penetration Test (SPT) carries forward as an economical field technique but needs additional testing methods for better accuracy measurements.

Introduction

The Standard Penetration Test (SPT) maintains its status as the primary in-situ testing method in geotechnical engineering because of its wide usage. Soil resistance density and strength values that engineers need to design foundations and earthworks projects can be obtained from this in-situ testing method. Various geological characteristics together with New Zealand’s high seismic activity require the SPT method to provide essential subsurface information that supports engineering structure reliability and safety. Assignment about STANDARD PENETRATION TEST – 2025

The guideline establishes official procedures for conducting Standard Penetration Tests throughout New Zealand for achieving reliable geotechnical investigation results. This specific standard operates with international requirements but maintains focus on the country’s regulatory and geological factors within New Zealand’s particular environmental systems. The document specifies equipment specifications while also describing testing protocols alongside safety recommendations for SPT testing and delivers instructions for result interpretation that focuses on applications including liquefaction assessment together with foundation engineering and slope analysis.

Geotechnical professionals who follow these specifications can produce SPT data which enables reliable engineering solutions that meet the specific needs of New Zealand’s environment. Engineers together with geologists and other stakeholders participating in geotechnical investigations and building projects in the country can find all necessary details in this extensive document. Assignment about STANDARD PENETRATION TEST – 2025

Background/ Literature review

The SPT method which stands for Standard Penetration Test serves as a widely adopted in-situ test for measuring soil properties especially its penetration resistance. New Zealand Geotechnical Society follows established standards together with guidelines to maintain reliable and consistent results during geotechnical research activities.

The Standard Penetration Test in New Zealand follows the New Zealand Geotechnical Society (NZGS) guidelines and national or international standards ASTM D1586 or ISO 22476-3 which have been adapted to fit local site characteristics. Foundation design work together with liquefaction analysis and soil characterization use the SPT as their fundamental investigation tool.

The split-barrel sampler penetrates the ground by using prescribed hammer weight and drop height according to the SPT method. The measurement of hammer strikes during sampling to reach a setback distance (300 mm) define the N-value that supports density and strength estimations as well as liquefaction potential evaluation.

Evolution of In situ Testing

In situ testing development can be tracked through Figure 1. Scientific findings have proved the SPT existed during the time of early human ancestors around 2.8 million years back. The scientific name Homo Incorrect us represents this early human form which anthropologists identified. Early human use of rocks as tools happened approximately during this period although it never technically held any truth.

Methodology for Standard Penetration Testing (SPT)

Standard Penetration Testing (SPT) allows field professionals to evaluate soil properties which include strength measurements as well as density assessments along with bearing capacity determination. The standardized method provides standardized procedures which ensure result consistency and accuracy.

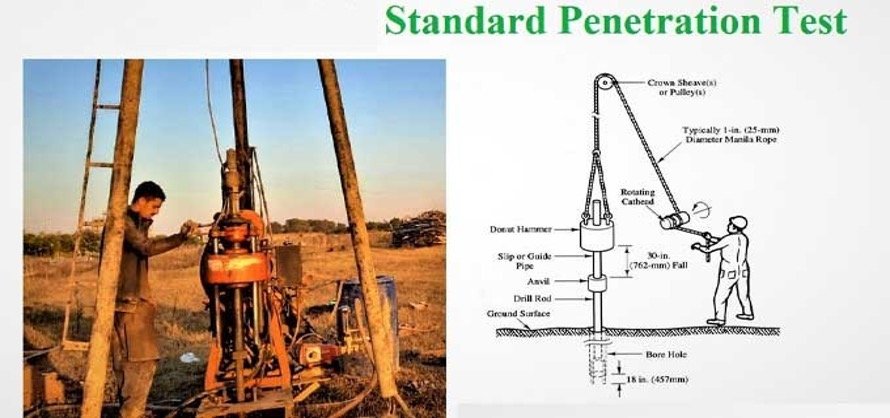

1. Equipment Used

• The tripod system should reach 4 meters high with an adjustable ladder on one support to reach the mounted mechanism.
• Tripod head with hook
• Pulley
• Guide pipe assembly
• Standard split spoon sampler
• Scientists need a drill rod extending the tests beyond the initial depth range.
• Heavy duty post hole auger (100 to 150 mm diameter)
• Heavy duty helical auger
• Heavy duty auger extension rods
• Sand bailer
• The materials include a rope measuring at least 15 meters together with the capacity to maintain 63.5 kilograms of repeated lift.
• The equipment requires a light duty rope for safe operation of the sand bailer.
• Chain pulley block
• Casing pipes
• Casing couplings
• Casing clamps
• Measuring tapes
• A straight edge (50 cm)
• Tool box

2. Procedure – assignment about STANDARD PENETRATION TEST – 2025

1. Drillers operate boreholes through rotary or percussion drilling until the target depth becomes reached.
2. The split-spoon sampler finds its position at the bottommost part of the borehole.
3. The sampler penetration into the ground occurs after dropping the hammer to 760 mm height.
4. The whole procedure requires logging three sections of blow counts to drive the sampler at 150 mm depths (total 450 mm).
5. To determine the SPT N-value for soil resistance the total blows recorded during the last 300 mm penetration matter.
6. The split-spoon sampler gets recovered before personnel collect the soil material that will be analyzed in a laboratory.

Findings & Results of Standard Penetration Testing (SPT)

The Standard Penetration Test (SPT) delivers essential data about soil structural capacity together with density levels for construction applications. The final result of this test emerges as the SPT N-value since it measures the essential aspect of split-spoon sampler penetration count.

• The interpretation of SPT results depends on the value of N because N represents soil density and bearing ability.
• Loose or weak soils of N < 10 demand ground improvement for stabilization.
• Soil loaded with an N-value between 10 and 30 is suitable for constructing shallow foundations in its compacted state.
• SPT results indicate dense soil having strong load capacity while reaching N > 30 values. Moreover, SPT data helps evaluate liquefaction potential in sandy soil to determine earthquake-related failure risk.

Discussion Assignment about STANDARD PENETRATION TEST – 2025

Geotechnical professionals widely employ the Standard Penetration Test (SPT) as a methodology to evaluate the strength level and density characteristics of soil. The procedure requires a split-spoon sampler to enter the soil using standard hammer impact while counting blow numbers until penetration completion. The N-value measurement assists engineers to evaluate properties of soil while enabling site construction suitability assessments.

Communication engineering assignment on ISAMBARD KINGDOM BRUNEL – remarkable ENGINEER -2025

Multipurpose foldable table Assignment on auto cad-solid works design 2025

Importance and Applications

SPT serves as an essential tool that supports foundation design practice and facilitates soil classification assessments as well as liquefaction analysis procedures. Soil density and strength increases as N-value numbers rise because dense and strong soils support heavy structures best but weak or loose soils demand ground improvement. The SPT technique demonstrates high effectiveness when used for granular soils including sands and gravels because other testing methods often provide inaccurate strength results.

Recommended Practices for SPT in New Zealand

1. Equipment Calibration:

• Test equipment must have a hammer weight value of 63.5 kg (140 lbs) along with a drop height of 760 mm (30 inches).
• The split-barrel sampler requires 50.8 mm (2 inches) outer diameter together with 35 mm (1.38 inches) inner diameter.

2. Testing Procedure:

• The sampler should penetrate the soil at three separate depths of 150 mm (6 inches).
• The number of required blows should be recorded for each tested interval.
• The depth-related stiffness parameter is obtained by summing blows within the last two penetration intervals (300 mm at the end).

3. Corrections:

• The methods for energy correction adjust for the efficiency of the hammer device through the N₆₀ value.
• When testing deep soil deposits you must use overburden pressure correction.

4. Reporting:

The borehole logs must contain depth measurements together with N-values and soil descriptions and any other essential information.

Geotechnical designs require an interpretation of results together with other geotechnical data to make recommendations.

Troubleshooting Guide: 3 Common Problems in Standard Penetration Testing (SPT)

1. Equipment Malfunction (Hammer Energy Variations)

Faulty hammer energy transmission produces variable N-values which results in incorrect assessment of soil strength.

Solution:

• The maintenance team should conduct periodic examination and calibration tests of the hammer system.
• Equipment that employs automatic trip hammers produces predictable energy inputs.

2. Borehole Disturbance and Cave-in

The walls of the borehole tend to collapse at the same time that the soil structure becomes disrupted and this produces readings of penetration resistance that are unreliable.

Solution:

• Borehole stability can be achieved by implementing either drilling mud or casing.
• Conduct the test directly after drilling to stop the test from being affected by disturbances.
• Alternative testing methods including Cone Penetration Testing (CPT) should be employed when dealing with extremely loose sands.

3. Incorrect N-Value Interpretation

When obtaining N-values the readings do not represent true soil strength thus enabling foundation design issues.

Solution:

• Use correction variables including the energy efficiency correction and overburden pressure correction.
• The measured results should be compared against findings from CPT and vane shear tests.
• Standard procedures according to ASTM D1586 must be implemented exactly as written.

Conclusion

Soil engineers utilize the Standard Penetration Test (SPT) as their standard in-situ assessment method to measure crucial data needed for classification of soils and designs of foundations and liquefaction evaluations. The authors presented an analysis of SPT methodology as well as its experimental results and practical applications because the test serves crucial purposes in evaluating soil strength and density measurement. Cost-effective and reliable SPT is commonly used but its energy variations together with unstable boreholes and subjective interpretation requirements present operational limitations.

SPT results become more accurate through best practice methods that include calibration of equipment and use of correction factors in addition to combining tests with Cone Penetration Testing (CPT). National and international guidelines in New Zealand maintain reliable and consistent practices particularly when assessing dangerous soil liquefaction in seismically active zones.

SPT stands as an essential geotechnical instrument which provides essential contributions to developing secure engineering approaches. Modern technological advancements and improved correlation models will enhance manual SPT data reliability so it retains its value in present-day geotechnical investigations. assignment about STANDARD PENETRATION TEST – 2025

Reference

• ASTM International. (2018). Standard Test Method for Standard Penetration Test (SPT) and Split-Barrel Sampling of Soils (ASTM D1586-18). West Conshohocken, PA: ASTM International.
• British Standards Institution. (2005). Geotechnical investigation and testing – Field testing – Part 3: Standard penetration test (BS EN ISO 22476-3:2005). London: BSI.
• New Zealand Geotechnical Society (NZGS). (2005). Guidelines for Field Testing in Geotechnical Engineering. Wellington: NZGS.
• Terzaghi, K., Peck, R. B., & Mesri, G. (1996). Soil mechanics in engineering (3rd edition). Wiley.
• American Society for Testing and Materials. (2018). ASTM D1586-18: Standard test method for SPT and Split-barrel Sampling of Soils. West Conshohocken, PA: ASTM International.
• International Organization for Standardization. (2005). ISO 22476-3: Geotechnical investigation and testing—Field testing—Part 3: SPT. Geneva, Switzerland: ISO.
